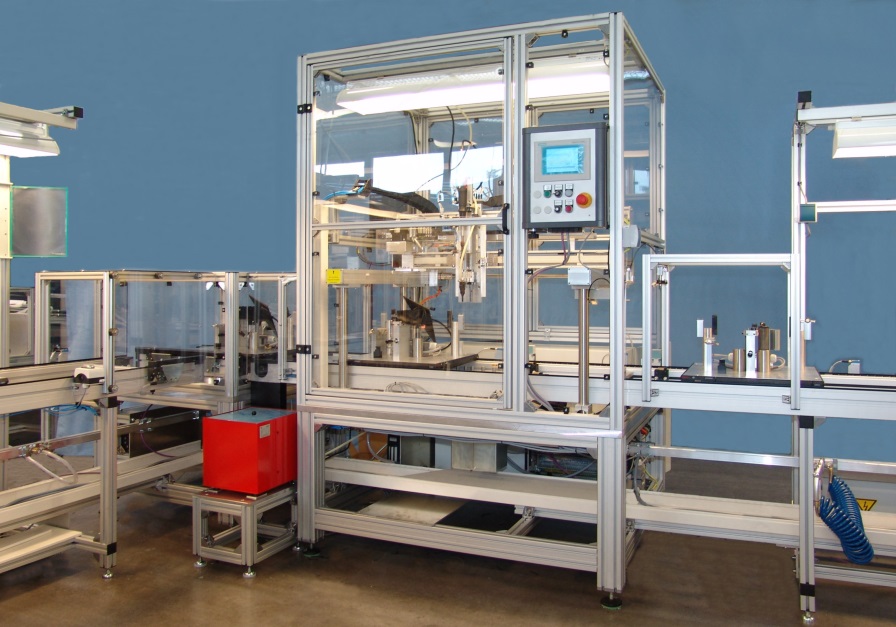

Assembly Line For Motor Vehicle Exterior Mirrors

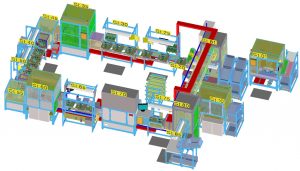

U-line with 5 fully automated workstations and 8 automated manual workstations

  • Circulating workpiece carrier system with 2 lifts and 2 turning stations
  • Yield: 1 million mirror components / year; quickly convertible for 768 product variants
  • Automatic preliminary assembly including lubrication
  • Inserting of a cable harness and assembly of drive and spring elements
  • Automated testing and screwing including force-distance monitoring
  • Automated placement of cable ties
  • Automated testing of all swivel as well as fold-in functions of the mirror including the recording of the electrical characteristic curve
  • Storage of all measured values and transfer to customer database
