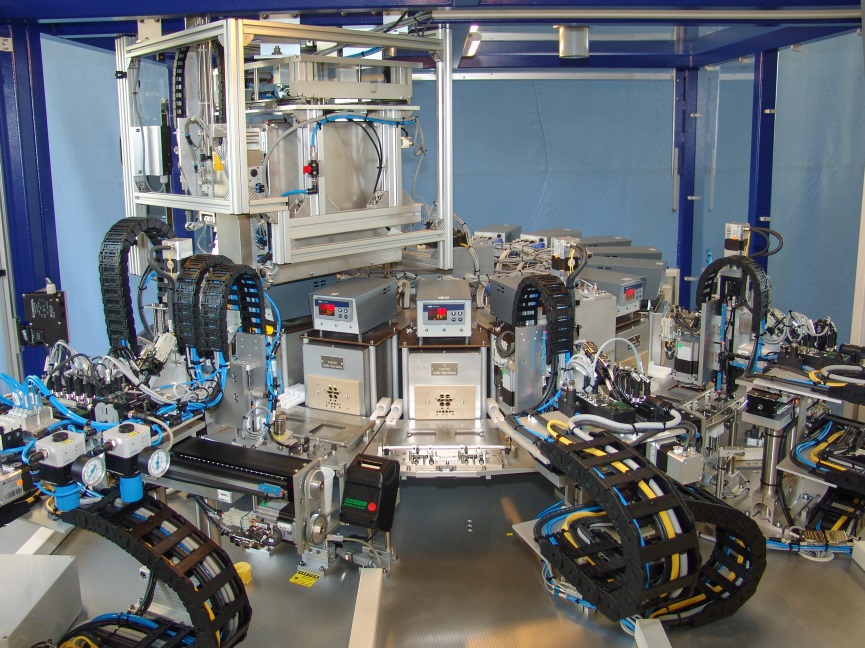

Testing Facility For Thermal Sensors

Automatic heating, fine-tuning, securing and marking at temperatures from 50 to 350 °C

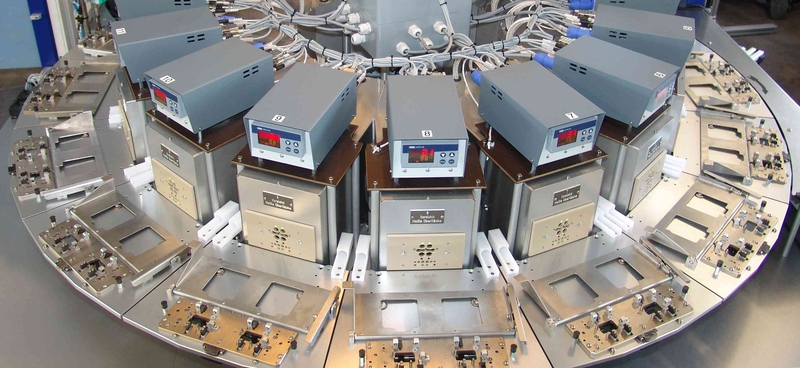

  • 16 fine calibrators (± 0.5 K) within the rotary indexing system
  • Double workpiece carriers with pneumatic locking units
  • Calibration of zero and switching point for upper temperature over x/y/z φ – servo axle systems
  • Pointer montage, adhering as well as lacquer protection via x/y/s servo axle systems
  • High-voltage testing
  • Thermal transfer printing with applicator for etiquettes
  • Cycle time 18 s including heating and transient oscillation
