Joint Research Project MOFA 2013

Development of technology suitable for series production and processes to assembly modular OLED-functional systems for energy-efficient surface radiator applications

Optische und elektrische Prüfung von Bare Level OLEDs

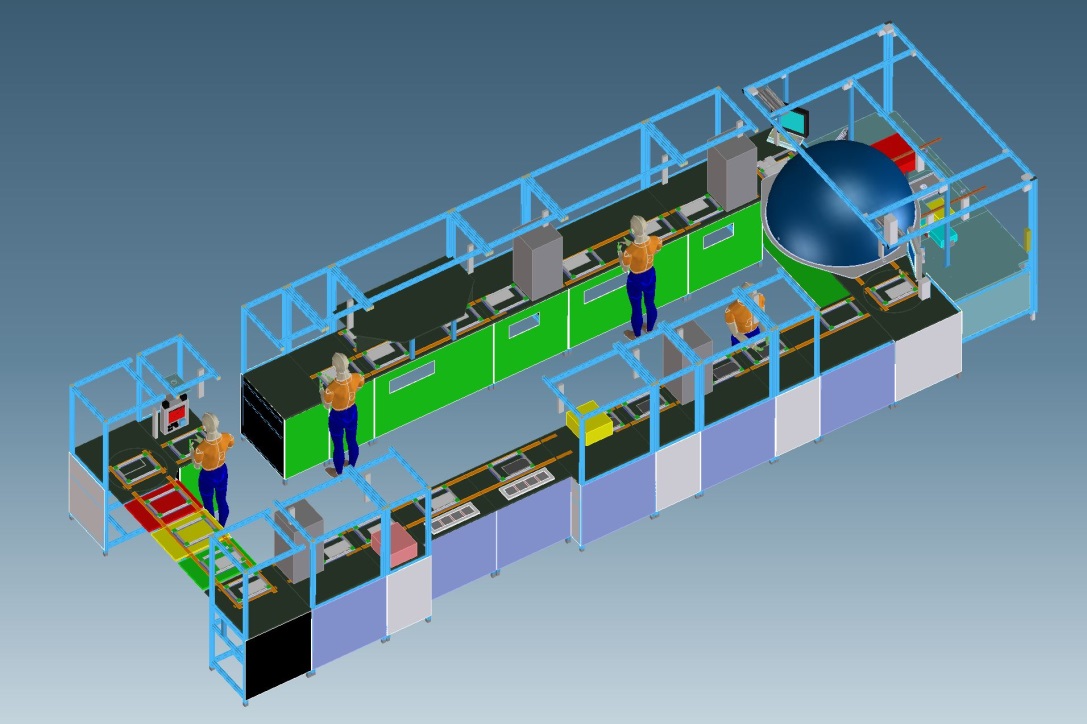

Process Steps for 1st Automation Level

  • Preparation and insertion OLED
  • Electrical test
  • Optical surface control (front, turned on)
  • Laminating of optical light extraction foils
  • Optical surface control (front, turned off)
  • Integral measurement (half-moon)
  • Turning device 180°
  • Optical surface control (backside, turned off)
  • Measuring deformation/dosage adhesive PCB (printed circuit board)
  • Assembly PCB
  • Hardening bonding PCB
  • Turning device 180°
  • Electrical measurement
  • Optical surface control (backside, turned off)
  • Quality gate/ removal device

The project was supported by the Free State of Thuringia and cofinanced through funds of the European Union within the scope of the European Regional Development Fund (EFRE).
